This morning I wanted to have a quick look at our Direct Access infrastructure and when opening the console I got greeted with various errors all explaining that there was a configuration load error:

In words: ICMP settings for entry point cannot be determined. Or:

In words: Settings for entry point Load Balanced Cluster cannot be retrieved. The WinRM client cannot process the request. It cannot determine the content type of the HTTP response from the destination computer. The content type is absent or invalid.

Because initially I only stumbled upon the ICMP settings … error I had to dig a bit deeper. I searched online on how to enable additional tracing capabilities, but I couldn’t find anything. From reverse engineering the RaMmgmtUI.exe I could see that more than enough tracing was available. Here’s how to enable it:

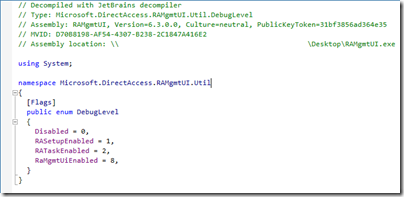

Create a REG_DWORD called DebugFlag below HKLM\SYSTEM\CurrentControlSet\Services\RaMgmtSvc\Parameters. For our purpose we’ll give it a value of 8. For an overview of the possible values:

I’m not sure if you can combine those in some way. After finding this registry key, I was able to find the official article on how do this: TechNet: Troubleshooting DirectAccess. I Should have looked a bit better for that information perhaps… After closing the Remote Access Management Console and opening it again, the log file was being filled up:

You can find the trace file in c:\Windows\Tracing and it’s called RaMgmtUIMon.txt After opening the file I stumbled across the following error:

2112, 1: 2014-09-30 11:51:43.116 Instrumentation: [RaGlobalConfiguration.AsyncRefresh()] Exit
2112, 12: 2014-09-30 11:51:43.241 ERROR: The WinRM client cannot process the request. It cannot determine the content type of the HTTP response from the destination computer. The content type is absent or invalid.
2112, 9: 2014-09-30 11:51:43.242 Failed to run Get-CimInstance

I then used PowerShell to try to do the same: connect to the other DA node using WinRM:

The command: winrm get winrm/config –r:HOSTNAME The error:

WSManFault
    Message = The WinRM client cannot process the request. It cannot determine the content type of the HTTP response from the destination computer. The content type is absent or invalid.

Error number:  -2144108297 0x803380F7
The WinRM client cannot process the request. It cannot determine the content type of the HTTP response from the destination computer. The content type is absent or invalid.

Googling on the error number 2144108297 quickly got me to the following articles:

• MIRU.CH: How the kerberos token size can affect winrm and other kerberos based services
• KB820129: Http.sys registry settings for Windows
• KB970875: Large Kerberos tokens cause WinRM requests to fail

Basically I was running into this issue because my AD user account was member of a large amount of groups. The MaxTokenSize has been raised in Windows 2012 (R2) so that’s already covered, but winhttp.sys, which WinRM depends on, hasn’t. When running into Kerberos token bloat issues on web applications, typically the MaxRequestBytes and MaxFieldLength values have to be tweaked a bit.

There are various ways to configure these. Using GPO or a manual .reg file that you can just double click:

Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\HTTP\Parameters]

"MaxRequestBytes"=dword:0000a000

"MaxFieldLength"=dword:0000ff37

In my environment I’ve set MaxRequestBytes to 40960 and MaxFieldLength to 65335. But I am by no means saying those are the advised values. It’s advised to start with a lower value and slightly increase until you’re good to go.

Conclusion: if you run into any of the above errors when using the Direct Access management console, make sure to check whether WinRM is happy. In my case WinRM was in trouble due to the size of my token.
